Making Your Pipe Marker Selection EZ!
We at Brimar thrive to make your selection, navigation, and shopping experience EZ! and it is because of this that we have created many informational pages like this one to help with your product selection process. Check out below the key features of our most popular products, if more information about specific products is required, click on any of the respective links below to view it.
SELF-ADHESIVE PIPE MARKERS™ & ARROWS (Stick On Labels)
- Self adhesive markers you peel and stick
- Markers' adhesive has been formulated with an extra heavy coating to ensure adhesion to a variety of different pipe and insulation surfaces.
- Markers should only be applied to clean and dry surfaces.
- Markers comply with ANSI & ASME standards if used in conjunction with arrows, all 3 options of assembly shown on the side are in compliance.
- Durability: 4 to 5 years Mid Continental US
- Service Temp: -20°F (-29°C) to 200°F (93°C)
- Minimum Application Temp: 50°F (10°C).
- Surface Prep: Clean & Dry
- Spec Compliance: ANSI / ASME A13.1
SNAP-AROUND and STRAP-ON PIPE MARKERS™
- Manufactured with rigid PVC vinyl, and printed with UV fade resistant inks.
- These Markers are available in two styles, Snap-Around and Strap-On (strap-on markers are supplied with holes and 2 nylon ties)
- For pipe diameters 3/8" to 6", use Snap-Around Markers (Styles AA, A, B, C, D, and E); these markers are simply uncoiled by hand and automatically recoil around the pipe.
- For pipe diameters larger than 6", use Strap-On Markers (Styles F, G and H); these markers are installed using nylon ties or S.S. Strapping, Brimar supplies a pair of long nylon ties with each of these markers.
- Advantages of Snap-Around and Strap-on Pipe Markers™: No pipe preparation, 360° visibility, speed of installation, arrows included and overall better appearance.
- Durability: 4 to 7 years outdoors Mid Continental US
- Service Temp: -40°F to 160°F (-40° C to 71°C)
- Minimum Application Temp: None
- Surface Prep: None
- Spec Compliance: None
PIPE MARKERS ON A ROLL
- Each roll consists of 50 markers & 50 arrows
- Available in 2 sizes (Small & Large), use
- Small markers for pipes 3/4" to 2-1/4" O.D.
- Large markers for pipes 2-1/2" to 7-7/8" O.D.
- Markers comply with ANSI & ASME A13.1 when used on pipe sizes up to 7-7/8" O.D.
- Advantages: Made with InfiniStick™ technology, cost-effective, arrows included, easy installation
- Durability: 4 to 7 years.
- Service Temp: -20°F (-29°C) to 200°F (93°C)
- Minimum Application Temp: 50° F (10° C)
- Surface Prep: Clean & Dry
- Compliance: ANSI / ASME A13.1 2020
WRAP-AROUND PIPE MARKERS ON A ROLL
- Wrap tape completely around pipe or cut into individual markers
- Self adhesive vinyl labels
- Legends alternate so arrows can point in either direction
- Markers' adhesive has been formulated with an extra heavy coating to ensure adhesion to a variety of different pipe and insulation surfaces.
- Available in 2 sizes (Small & Large), use
- Small Rolls (8" x 30 feet long) on pipes 3/4" to 2-1/4" O.D.
- Large Rolls (12" x 30 feet long) on pipes 2-1/2" to 7-7/8" O.D.
- Small Rolls contain 240 markers and arrows
- Large Rolls contain 144 markers and arrows
- Durability: 4 to 5 years outdoors Mid Continental US
- Service Temp: -20°F (-29°C) to 200°F (93°C)
- Minimum Application Temp: 50° F (10° C)
- Surface Prep: Clean & Dry
- Compliance: ASME & ANSI A13.1
HIGH-PERFORMANCE PIPE MARKERS
- High temperature, chemical and weather resistant makes this marker the most durable you can buy anywhere.
- UV Printed legend is laminated between two layers of polyester, creating an extremely DURABLE product.
- These Markers are available in 2 styles: flat markers that Wrap Around pipe and markers that are laminated onto a White Aluminum Carrier (Strap On markers).
- For pipe diameters of 1/2" to 7-7/8", use Snap-Around Markers (Styles 4A, 4B, 4E, and 4F); these markers will wrap around pipe and are secured in place by an overlapping clear adhesive strip.
- For pipe diameters 8" and larger use Strap-On Markers (Styles 4G & 4H); these markers are laminated to a heat and chemical resistant aluminum carrier that is then strapped on to pipe with nylon ties or stainless steel strapping.
- Durability: 5 to 8 years outdoors Mid Continental US
- Service Temp: -40° to 248°F (-40° to 120°C)
- Minimum Application Temp: None
- Surface Prep: None
- Compliance: ASME & ANSI A13.1

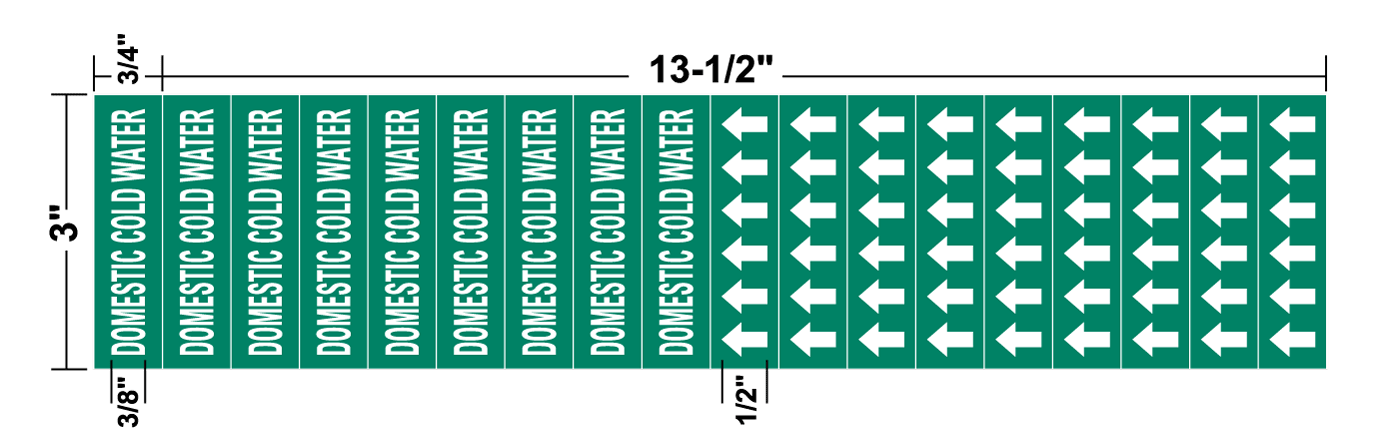

SMALL DIAMETER PIPE MARKERS
- Each card consists of 9 individual legends and 9 individual arrow bands
- Each individual label measures 3" wide x 3/4" high
- Each legend's text height measures 3/8"
- Each arrow is 1/2" high
- Self adhesive markers you peel and stick
- Markers' adhesive has been formulated with an extra heavy coating to ensure adhesion to a variety of different pipe and insulation surfaces.
- Markers should only be applied to clean and dry surfaces.
- Markers comply with ANSI & ASME standards if used in conjunction with arrows.
- Durability: 4 to 5 years outdoors Mid Continental US
- Service Temp: -20°F (-29°C) to 200°F (93°C)
- Minimum Application Temp: 50°F (10°C).
- Surface Prep: Clean & Dry
- Compliance: ASME & ANSI A13.1
